Brand Name : BEFANBY
Model Number : BWP
Certification : CE,SGS,ISO9001
Place of Origin : Henan,China
MOQ : 1 set/sets
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 1500 set/sets, per year
Delivery Time : 30-40 days as usual delivery,20-30days for urgent delivery
Packaging Details : The no rail electric transfer cart 25 ton will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color : Customized
Warranty : 24 months
Load capacity : 1-1500T for trackless transfer cart
Power supply : Battery Operated
Port : Qingdao/Tianjin/Shanghai
Application : Heavy industry, pipe transport
Materials : Steel
The no rail electric transfer cart can be used indoors and outdoors, does not need to install tracks, and can be driven on hard ground, which means that the trackless transfer cart can move in any direction, with higher flexibility and versatility.
No rail electric transfer cart is battery driven, battery life is strong, convenient charging, for enterprises to save costs.
One of the advantages of trackless electric steerable cart is flexible steering. The steerable transfer cart is equipped with rubber wheels that can rotate in multiple directions and even turn in place.
Another advantage of no rail electric flat cart is that they can be operated remotely. The staff can easily operate the electric cart while standing in the safe area, which improves safety and convenience.
The trackless electric flat cart is equipped with a safety protection device. Sound and light alarm light and laser sensor are necessary, these two safety components can play the role of reminder and protection. In addition, we can also install anti-collision buffer device according to customer demand, effectively reduce the impact degree of flat car when accidents occur.
Our no rail electric flat carts are widely used in logistics industry, warehouse, construction, factories and other working environments. Trackless electric transfer cart has the advantages of flexibility, safety and high efficiency, and is a reliable material transportation equipment.
Model | BWP-2T | BWP-5T | BWP-10T | BWP-15T | BWP-20T | BWP-25T | BWP-30T | BWP-40T | BWP-50T | BWP-60T | BWP-70T | BWP-80T | BWP-100 | |
Rated load(t) | 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 100 | |
Table Size | Length(L) | 2000 | 2200 | 2300 | 2400 | 2400 | 3500 | 3500 | 5000 | 5500 | 5600 | 6000 | 6500 | 6600 |
Width(W) | 1500 | 2000 | 2000 | 2100 | 2200 | 2200 | 2200 | 2500 | 2600 | 2500 | 2600 | 2800 | 3000 | |
Heigth(H) | 450 | 500 | 550 | 600 | 600 | 700 | 700 | 800 | 800 | 850 | 900 | 950 | 1200 | |
Wheel Base(mm) | 1080 | 1650 | 1650 | 1600 | 1650 | 1650 | 1650 | 2000 | 2000 | 1800 | 1850 | 1950 | 2000 | |
Axle Base(mm) | 1380 | 1680 | 1700 | 1830 | 1850 | 2700 | 2700 | 3600 | 2850 | 2900 | 3500 | 3500 | 4000 | |
Wheel Dia.(mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ400 | Φ450 | Φ450 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | Φ600 | |
Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 2*1.2 | 2*1.5 | 2*2.2 | 2*3.5 | 2*4.5 | 2*5.5 | 2*5.5 | 2*6.3 | 2*7.5 | 2*10 | 2*12 | 30 | 40 | |
Batter Capacity(Ah) | 250 | 180 | 250 | 330 | 400 | 400 | 450 | 440 | 500 | 600 | 600 | 800 | 1000 | |
Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | 72 | 72 | 72 | |
Running Time When Full Load | 2.5 | 2.88 | 2.8 | 2.3 | 2.2 | 1.8 | 2 | 2.6 | 2.5 | 2.2 | 1.8 | 2 | 1.9 | |
Running Distance for One Charge(Km) | 3 | 3.5 | 3.4 | 2.8 | 2.7 | 2.2 | 2.4 | 3.2 | 3 | 2.7 | 2.2 | 2.4 | 2.3 | |
Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 152 | 185 | 190 | |
Reference Wight(t) | 2.3 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
Product Tap: Material Handling Cart , Rail Transfer Cart
![]() |

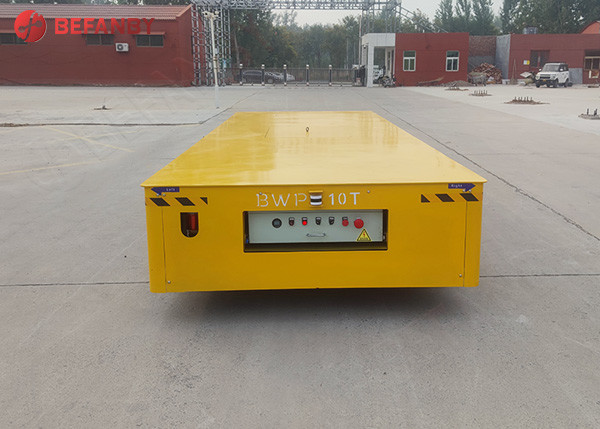

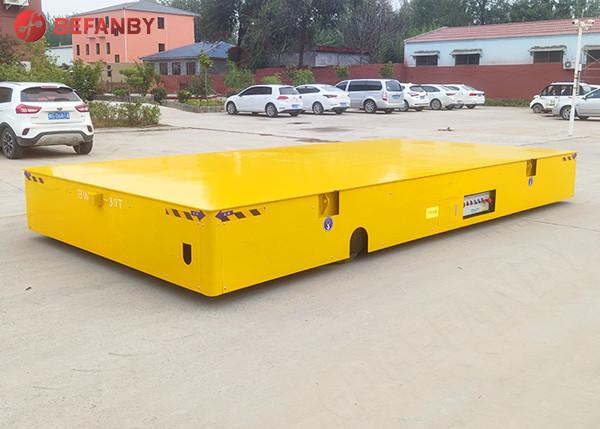

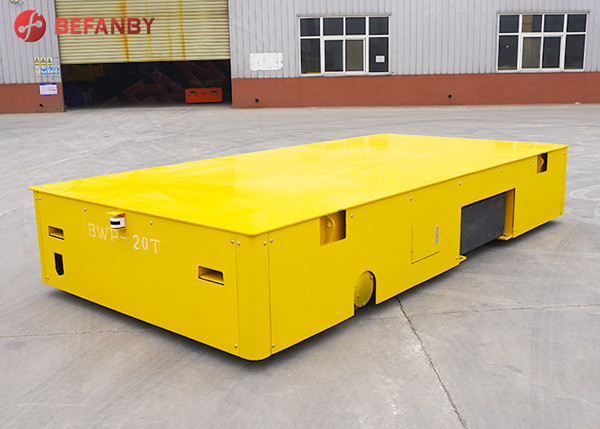

Remote Control No Rail Battery Electric Transfer Cart 25 Ton Images |
